10.2. Slope Ratio Method
This is a general purpose procedure that can be used to analyse balanced or unbalanced assays with blanks (0dose treatments), plate (row) effects and unlimited numbers of dose levels and test preparations. The algorithm is based on Finney (1978). The Slope Ratio Method specification given in European Pharmacopoeia (19972008), is a restricted special case of this procedure.
10.2.1. Slope Ratio Variable Selection
The data format is as in Parallel Line Method (see 10.0.1. Data Preparation and 10.0.2. Doses, Dilutions and Potency). Measurement data is stacked in a single column, a second column contains the dose level for each measurement and another categorical column indicates which preparation a particular measurement belongs to. An optional row factor can be entered to keep track of the replicates.
Designs can be unbalanced, i.e. the number of replicates for each dosepreparation combination may be different, dose levels for standard and test preparations may be different, there can be more than one test preparation, but the first preparation should always be the standard. It is compulsory to select at least three columns [Data], [Dose] and [Preparation]. The optional [Row Factor] column is usually used to isolate a plate effect (the replicates) and when one is selected, the program assumes that all dose/treatment groups (or cells) have an equal number of replicates.
10.2.2. Slope Ratio Output Options
Let X_{ijk} and Y_{ijk} be the dose and response values for the i^{th} preparation (i = Blank, Standard, Test 1, …, Test n – 1) and the j^{th} dose level of the k^{th} replicate.
10.2.2.1. Normality Tests
As in Parallel Line Method, you can select to display all or any of the four most commonly used normality tests; ShapiroWilk, KolmogorovSmirnov, Cramervon Mises and AndersonDarling (see 10.1.2.1. Normality Tests for Bioassays).
10.2.2.2. Homogeneity of Variance Tests
Five alternative homogeneity of variance tests are performed for unique dosepreparation (treatment) groups as described in section 10.1.2.2. Homogeneity of Variance Tests.
10.2.2.3. Validity of Assay
This output option displays an Analysis of Variance (ANOVA) table, which is used in testing the Validity of Assay. The standard significance tests performed are (i) regression, (ii) intercept and (iii) nonlinearity. The overall nonlinearity test is also broken down to individual tests for each preparation. If blanks (entries with a 0 dose level) exist, there will be an additional term for them. If a [Row Factor] was selected it will appear in the table as a main effect.
Define a cell as a unique combination of dose levels and preparations. For each cell calculate:
Define the overall mean as:
where N is the total number of observations. Also define and as the intercept and slope for each preparation from Separate Regression and as the slope for each preparation from Common Regression (see 10.2.2.4. Regression).
The following definitions are used in calculating the blanks effect:
where Sxx_{i} is as defined in Separate Regression and:
Also define the number of unique dosepreparation combinations excluding blanks as:
The ANOVA table is then constructed as follows.
Due to
Degrees of Freedom

Sum of Squares
Plate
K – 1
SSP

Between Doses
D – 1 + B
SSD

Blanks
B = 0 or 1
SSB

Regression
n
SSR

Intercept
n – 1
SSD – SSB – SSR – SSL

Nonlinearity
D – 2n
SSL

Nonlinearity for Preparation_{i}
D / n – 2
SSL_{i}

Residual
N – D – B – (K – 1)
SSE – SSP
– SSP
Total
N – 1
SST

10.2.2.4. Regression
Calculate for i = S, T_{1}, …, Tn – 1:
The estimated parameters of the line of best fit for each preparation (i = S, T_{1}, …, Tn – 1) are:
Slope:
Rsquared:
Residual sum of squares:
Standard error of slope:
This information is displayed in the Separate Regression table and used in drawing the best fit lines in Plot of Treatments.
The Common Regression is obtained from a multivariate regression run, after transforming the data into the following form first.

Dependent
Independent Variables


Variable
Standard
Test 1
Test n
Blank
Y_{0jk}
0
0
0
Replicates
…
…
…
…
Standard
Y_{Sjk}
X_{Sjk}
0
0
Replicates
…
…
…
…
Test 1
Y_{1jk}
0
X_{1jk}
0
Replicates
…
…
…
…
Test n
Y_{njk}
0
0
X_{njk}
Replicates
…
…
…
…
The estimated parameters are displayed in Common Regression table.
10.2.2.5. Potency
For each test preparation, the potency ratio is calculated as follows:
For confidence intervals of M first define Vss, Vii, Vsi, i = T_{1}, …, T_{n – 1} as the values corresponding to elements of (X’X)^{1} matrix from the Common Regression run. First define:
Then the confidence interval for potency ratio of each test preparation is calculated using Fieller’s Theorem (see Finney 1978, p. 156):
where the variance of M_{i} is:
and the approximate variance of M_{i} is (when g is negligible):
M_{i} is the relative potency and M_{iL} and M_{iU} are the confidence limits for the relative potency. The estimated potency and its confidence interval are obtained by multiplying these relative values by the assumed potency supplied by the user for each test preparation separately.
Weights are computed after the estimated potency and its confidence interval are found:
and % Precision is:
If the data column [Dose] contains the actual dose levels administered in original dose units, we will obtain the estimated potency and its confidence limits in the same units. If, however, the [Dose] column contains unitless relative dose levels, then we may need to perform further calculations to obtain the estimated potency in original units. To do that click the [Opt] button situated to the left of the Potency option. Then a further dialogue pops up asking for entry of assigned potency of the standard, assumed potency of each test preparation and predilutions for all preparations including the standard. UNISTAT will then calculate the estimated potency as described in section 10.0.2. Doses, Dilutions and Potency. Also see section 10.0.3. Potency Calculation Example.

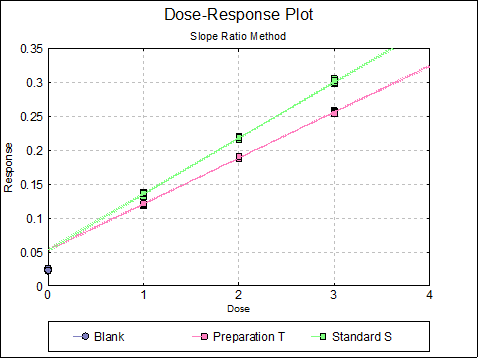

10.2.2.6. Plot of Treatments
This option generates a Plot of Treatments against dose levels. Standard and each test preparation are plotted in separate series and a line of best fit is drawn for each one of them. The coefficients of lines are as in Separate Regression output.
Clicking the [Opt] button situated to the left of the Plot of Treatments option will place the graph in UNISTAT’s Graphics Editor. The plot can be further customised and annotated using the tools available under the UNISTAT Graphics Window’s Edit menu.
The same plot is drawn here using the XY Plots procedure, this time with confidence intervals for regression lines included.
10.2.3. Slope Ratio Examples
Example 1
Data is given in Table 5.2.1I on p. 588 of European Pharmacopoeia (2008). The data is rearranged as described in section 10.0.1. Data Preparation and saved in columns 2426 of BIOPHARMA6.
Although the data set contains blanks (0 dose treatments), they need to be removed from the analysis. In Excel AddIn Mode, you can simply select the block X10:Z57. In StandAlone Mode, you can define C26 as a Select Row column to omit these rows from the analysis, without actually deleting them from the spreadsheet. To do this, click somewhere on column 26, and select Data → Select Row option from UNISTAT’s spreadsheet menus. The colour of C26 will change. This indicates that all rows with a 0 entry in this column will be omitted from subsequent analyses.
Select Bioassay → Slope Ratio Method. In StandAlone Mode select columns C23, C24 and L25 respectively as [Data], [Dose] and [Preparation] from the Variable Selection Dialogue. In Excel AddIn Mode, you will need to select the three highlighted columns in the same order. Click [Next] to proceed to Output Options Dialogue. If you do not want to display all normality tests click on the [Opt] button situated to the left of Normality Tests option. Click [None] and then check the ShapiroWilk Test and Report summary statistics boxes. Then click [Back] and [Finish].
In StandAlone Mode, do not forget to reset column 4 after you finish this example, otherwise the Select Row function will be effective in subsequent procedures you run. To do this, click somewhere on column 4, and select Data → Select Row option again, or select Formula → Quick Formula from the menu and enter data. The colour of C26 will change back to its original value.
Slope Ratio Method
Rows 18 Omitted
Selected by C26 Select
Normality Tests
Smaller probabilities indicate nonnormality.
* Lilliefors probability = 0.2 means 0.2 or greater.
DosexPreparations
Valid Cases
Mean
Standard Deviation
ShapiroWilk Test
Probability
1 x Standard S
8
0.1351
0.0025
0.8969
0.2707
2 x Standard S
8
0.2176
0.0021
0.8816
0.1952
3 x Standard S
8
0.2996
0.0027
0.8269
0.0551
1 x Preparation T
8
0.1200
0.0011
0.8599
0.1199
2 x Preparation T
8
0.1898
0.0012
0.8042
0.0318
3 x Preparation T
8
0.2554
0.0018
0.9255
0.4763
Homogeneity of Variance Tests

Test Statistic
Probability

Bartlett’s Chisquare Test
8.5820
0.1269

BartlettBox F Test
1.7315
0.1239

Cochran’s C (max var / sum var)
0.3079
0.3345

Hartley’s F (max var / min var)
6.2344
0.0500
p > 0.05
Levene’s F Test
2.2830
0.0635

Validity of Assay
Due To
Sum of Squares
DoF
Mean Square
FStat
Prob
Constant
1.976
1
1.976


Regression
0.192
2
0.096
24849.565
0.0000
Intercept
0.000
1
0.000
0.001
0.9780
Nonlinearity
0.000
2
0.000
2.984
0.0614
Standard S Nonlinearity
0.000
1
0.000
0.086
0.7702
Preparation T Nonlinearity
0.000
1
0.000
5.882
0.0197
Treatments
0.192
5
0.038


Residual
0.000
42
0.000


Total
0.192
47
0.004


Separate Regression

Intercept
Slope
Residual SS
Rsquared
Standard S
0.0530
0.0822
0.0001
0.9989
Preparation T
0.0530
0.0677
0.0001
0.9992
Common Regression

Intercept
Slope
Residual SS
Rsquared
Standard S
0.0530
0.0822
0.0002
0.9990
Preparation T

0.0677


Potency
Test Preparation
Estimated Potency
Lower 95%
Upper 95%
Preparation T
0.8231
0.8171
0.8292
Test Preparation
Variance
Weight
% Precision
Preparation T
0.0000
110860.3771
99.2644
G =
0.0001
C =
1.0001
Example 2
Data is given in Table 5.2.2I on p. 589 of European Pharmacopoeia (2008).
Open BIOPHARMA6 and select Bioassay → Slope Ratio Method. The blank preparation is already omitted from this data set. From the Variable Selection Dialogue select columns C27, C28 and L29 respectively as [Data], [Dose] and [Preparation]. Click [Next] to proceed to Output Options Dialogue. Click on the [Opt] button situated to the left of Normality Tests option, click [None] and then check the Cramervon Mises Test and Report summary statistics boxes and click [Back] and then [Finish].
Slope Ratio Method
Normality Tests
Smaller probabilities indicate nonnormality.
DosexPreparations
Valid Cases
Mean
Standard Deviation
Cramervon Mises Test
Probability
1 x Standard S
2
18.0000
0.0000
*
*
2 x Standard S
2
23.6500
1.2021
0.0419
0.4774
3 x Standard S
2
30.4000
0.0000
*
*
4 x Standard S
2
36.1500
0.6364
0.0419
0.4774
1 x Preparation T
2
15.9500
1.2021
0.0419
0.4774
2 x Preparation T
2
23.6500
0.7778
0.0419
0.4774
3 x Preparation T
2
28.1500
1.0607
0.0419
0.4774
4 x Preparation T
2
36.1000
2.4042
0.0419
0.4774
1 x Preparation U
2
15.5500
0.2121
0.0419
0.4774
2 x Preparation U
2
19.4000
1.1314
0.0419
0.4774
3 x Preparation U
2
23.6500
0.7778
0.0419
0.4774
4 x Preparation U
2
27.2000
0.2828
0.0419
0.4774
Homogeneity of Variance Tests

Test Statistic
Probability
Bartlett’s Chisquare Test
5.2396
0.8129
BartlettBox F Test
0.5751
0.8146
Cochran’s C (max var / sum var)
0.4510
0.2364
Hartley’s F (max var / min var)
128.4444

Levene’s F Test


Validity of Assay
Due To
Sum of Squares
DoF
Mean Square
FStat
Prob
Constant
14785.770
1
14785.770


Regression
1087.665
3
362.555
339.498
0.0000
Intercept
3.474
2
1.737
1.626
0.2371
Nonlinearity
5.065
6
0.844
0.791
0.5943
Standard S Nonlinearity
0.446
2
0.223
0.209
0.8144
Preparation T Nonlinearity
4.453
2
2.227
2.085
0.1670
Preparation U Nonlinearity
0.166
2
0.083
0.078
0.9257
Treatments
1096.205
11
99.655


Residual
12.815
12
1.068


Total
1109.020
23
48.218


Separate Regression

Intercept
Slope
Residual SS
Rsquared
Standard S
11.7500
6.1200
2.2960
0.9939
Preparation T
9.7250
6.4950
13.4085
0.9692
Preparation U
11.6500
3.9200
2.1760
0.9860
Common Regression

Intercept
Slope
Residual SS
Rsquared
Standard S
11.0417
6.3561
21.3544
0.9807
Preparation T

6.0561


Preparation U

4.1228


Potency
Test Preparation
Estimated Potency
Lower 95%
Upper 95%
Preparation T
0.9528
0.8912
1.0181
Preparation U
0.6486
0.5903
0.7073
Test Preparation
Variance
Weight
% Precision
Preparation T
0.0008
5.2437
93.5355
Preparation U
0.0007
6.1678
91.0034
G =
0.0056
C =
1.0056
The standard has an assigned potency of 39 μg HA/ml. The two test preparations have an assumed potency of 15 μg HA/dose. Enter the following three lines into the potency boxes:
39  μg HA/ml
15  μg HA/dose
15  μg HA/dose
and 1 for predilution of all preparations (including the standard) and click [Finish].
For further information see section 10.0.2. Doses, Dilutions and Potency.
Slope Ratio Method
Potency
Assumed potency of Preparation T: 15 μg HA/dose
Assumed potency of Preparation U: 15 μg HA/dose
Test Preparation
Estimated Potency
Lower 95%
Upper 95%
Preparation T
14.2920
13.3681
15.2711
Preparation U
9.7295
8.8542
10.6088
Test Preparation
Variance
Weight
% Precision
Preparation T
0.0008
5.2437
93.5355
Preparation U
0.0007
6.1678
91.0034
G =
0.0056
C =
1.0056
Example 3
Table 7.10.2. on p. 161 from Finney, D. J. (1978) is an example with blanks, four replicates and two preparations.
Open BIOFINNEY and select Bioassay → Slope Ratio Method. From the Variable Selection Dialogue select columns C12 Data, C13 Dose and S14 Preparations respectively as [Data], [Dose] and [Preparation]. Click [Next] to proceed to Output Options Dialogue. Click [All] to select all output options and then click [Finish]. The potency ratio and its confidence limits are calculated with the default assumed potency of 1. The following output is obtained.
Slope Ratio Method
Normality Tests
Smaller probabilities indicate nonnormality.
* Lilliefors probability = 0.2 means 0.2 or greater.
DosexPreparations
Valid Cases
Mean
Standard Deviation
0 x Blank
4
41.7500
3.3040
0.5 x Standard
4
100.0000
3.5590
1 x Standard
4
161.5000
4.9329
0.5 x Test
4
85.0000
4.7610
1 x Test
4
122.2500
1.2583
DosexPreparations
ShapiroWilk Test
Probability
KolmogorovSmirnov Test
* Probability
0 x Blank
0.9157
0.5130
0.2521
0.2000
0.5 x Standard
0.8947
0.4051
0.2500
0.2000
1 x Standard
0.9646
0.8081
0.1939
0.2000
0.5 x Test
0.9110
0.4877
0.2357
0.2000
1 x Test
0.8949
0.4064
0.3287
0.1554
DosexPreparations
Cramervon Mises Test
Probability
AndersonDarling Test
Probability
0 x Blank
0.0443
0.5124
0.2706
0.4502
0.5 x Standard
0.0518
0.3989
0.3151
0.3280
1 x Standard
0.0304
0.7840
0.1973
0.7044
0.5 x Test
0.0463
0.4814
0.2783
0.4263
1 x Test
0.0676
0.2335
0.3610
0.2343
Homogeneity of Variance Tests

Test Statistic
Probability
Bartlett’s Chisquare Test
4.3575
0.3598
BartlettBox F Test
1.1126
0.3498
Cochran’s C (max var / sum var)
0.3372
0.8137
Hartley’s F (max var / min var)
15.3684

Levene’s F Test
3.3168
0.0390
Validity of Assay
Due To
Sum of Squares
DoF
Mean Square
FStat
Prob
Constant
208488.200
1
208488.200


Regression
31456.914
2
15728.457
1089.731
0.0000
Blanks
2.161
1
2.161
0.150
0.7043
Intercept
34.225
1
34.225
2.371
0.1444
Nonlinearity
0.000
0



Standard Nonlinearity
0.000
0



Test Nonlinearity
0.000
0



Treatments
31493.300
4
7873.325


Residual
216.500
15
14.433


Total
31709.800
19
1668.937


Separate Regression

Intercept
Slope
Residual SS
Rsquared
Standard
38.5000
123.0000
111.0000
0.9855
Test
47.7500
74.5000
72.7500
0.9745
Common Regression

Intercept
Slope
Residual SS
Rsquared
Standard
42.1429
118.6286
252.8857
0.9920
Test

81.2286


Potency
Test Preparation
Estimated Potency
Lower 95%
Upper 95%
Test
0.6847
0.6464
0.7236
Test Preparation
Variance
Weight
% Precision
Test
0.0003
3046.6783
94.3986
G =
0.0021
C =
1.0021
