10.1. Parallel Line Method
Balanced, symmetric or unbalanced assays can be analysed. The analysis is based on a regression of the response variable against the natural logarithm of the dose variable. A separate line is fitted on each preparation, subject to a constraint that they should be parallel. An assay is said to be balanced when:
1) there is an equal number of cases in each treatment group,
2) there is an equal number of dose groups for each preparation and
3) successive dose levels are the same for all preparations.
An assay fulfilling the first two conditions but having different dose levels for different preparations (yet having the same ratio of successive dose levels) will be called symmetric. Assays not fulfilling one or more of these conditions will be called asymmetric or unbalanced.
For validity tests, the following Analysis of Variance (ANOVA) options are available:
1) Completely randomised design
2) Randomised block design
3) Latin square design
4) Twin and triple crossover designs
The unbalanced assays can only be analysed using the Completely Randomised Design option. All other options require symmetric or balanced assays. In most cases, the program will detect whether an assay is unbalanced, symmetric or balanced and apply the relevant algorithm automatically.
Note that the example data sets given in European Pharmacopoeia (19972017) Parallel Line Method are all balanced.
10.1.1. Parallel Line Variable Selection

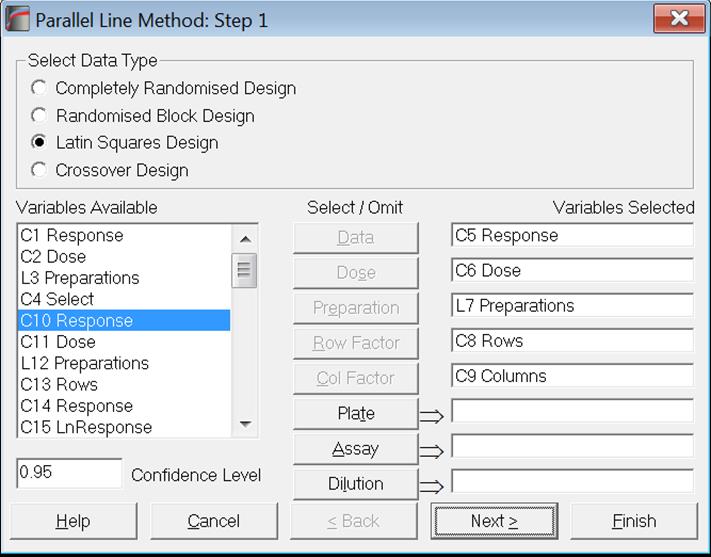

Once the data is arranged as described above (see section 10.0.1. Data Preparation), select Bioassay → Parallel Line Method from UNISTAT menus. A Variable Selection Dialogue will pop up.
Data columns available for selection are listed on the left. Variables are referred to by their column numbers, which are prefixed by a single letter representing the type of data. For instance, in the above example C1, C2 and C4 are numeric columns, whereas L3 means that column three contains Long Strings. Columns containing Short Strings (up to 8 characters) are prefixed by (S). Other data types that will probably not be used in bioassays are date (D) and time (T). If Column Labels have been entered, they will also appear in the list next to the column numbers.
You will need to assign tasks to variables by sending them to boxes on the right. To do this, highlight the variable on the left list and click on the desired task button (i.e. one of the command buttons in the middle of the dialogue). Likewise, you can deselect an already selected variable by highlighting it on the right list first and then clicking its task button.
Designs can be unbalanced, i.e. the number of replicates for each dosepreparation combination may be different, dose levels for standard and test preparations may be different, there can be more than one test preparation, but the first five characters of the standard preparation label should be “stand” or “refer” in any language (capitalisation is not significant). Otherwise the first preparation encountered in the [Preparation] column will be considered as the standard. It is compulsory to select at least three variables [Data], [Dose] and [Preparation], which have bold button fonts. There are three optional variables [Plate], [Assay] and [Dilution]. A plate effect, that will be subtracted from the residual sum of squares, can be calculated if required. For the latter two options see sections 10.0.4. Multiple Assays with Combination and 10.0.2. Doses, Dilutions and Potency respectively. Note that if the design is balanced, the plate effect will generate the same results as Randomised Block Design.
The frame Select Data Type (at the top) displays options for the type of Analysis of Variance to be performed. The number of variables to be selected is different for these types of analyses. When the second option Randomised Block Design is selected, four compulsory variables will need to be selected.
The third and fourth options Latin Square Design and Crossover Design require selection of five variables.
When all variables are selected, click the [Next] button to proceed to Output Options Dialogue.
10.1.2. Parallel Line Output Options
Output options that have further options under them (i.e. further dialogues and windows to display) have an [Opt] button placed to the left of their check boxes. When you click [Finish] without clicking on an [Opt] button first, the program will generate output with default selections. If you want to change the defaults, you can click on the [Opt] button to display further dialogues for this particular output option. Then you can either obtain this particular output option on its own by clicking [Finish], or click [Back] to display the Output Options Dialogue again and output all selected options together.
Data
This output option (which is available for all bioassay analysis methods supported here) will enable the user to include a printout of data used in the analysis as part of the output. This will be useful in fulfilling reporting and data integrity requirements.
Data

Response
Dose
Preparations
1
161
1
Standard S
2
151
1
Preparation T
3
162
1.5
Preparation T
4
194
2.25
Standard S
5
176
1.5
Standard S
6
193
2.25
Preparation T
7
160
1
Preparation T
8
192
2.25
Preparation T
9
195
2.25
Standard S
10
184
1.5
Standard S
11
181
1.5
Preparation T
12
166
1
Standard S
13
178
1.5
Preparation T
14
150
1
Standard S
15
174
1.5
Standard S
16
199
2.25
Preparation T
17
201
2.25
Standard S
18
161
1
Preparation T
19
187
2.25
Standard S
20
172
1.5
Standard S
21
161
1
Standard S
22
160
1
Preparation T
23
202
2.25
Preparation T
24
186
1.5
Preparation T
25
171
1.5
Standard S
26
170
1.5
Preparation T
27
193
2.25
Preparation T
28
163
1
Standard S
29
154
1
Preparation T
30
198
2.25
Standard S
31
194
2.25
Preparation T
32
192
2.25
Standard S
33
151
1
Preparation T
34
171
1.5
Preparation T
35
151
1
Standard S
36
182
1.5
Standard S
10.1.2.1. Validity of Data
One of the basic assumptions of Parallel Line Method is that for each treatment group (i.e. a unique dosepreparation combination) observations are normally distributed. Normality, homogeneity of variance and outliers of treatment groups can be detected and tested using the following descriptive statistics, tests and plotting procedures provided under this comprehensive menu option.
Note that under each test type we provide multiple alternatives. There are four normality tests, five homogeneity of variance tests and three outlier tests. In most cases you will need to use only one of these tests from each type. You can simply uncheck the tests you do not need and UNISTAT will remember your choices in future session.
10.1.2.1.1. Summary Statistics
The selected statistics will be displayed for each unique dosepreparation group.
For more information see section 5.1.1. Summary Statistics.
Example
Summary Statistics
Data variable: Response
Subsample selected by: Dose x Preparations
Quantile Method: Simple Average

Valid Cases
Mean
Median
Variance
1 x Standard S
6
158.6667
161.0000
43.4667
1 x Preparation T
6
156.1667
157.0000
22.1667
1.5 x Standard S
6
176.5000
175.0000
28.7000
1.5 x Preparation T
6
174.6667
174.5000
75.0667
2.25 x Standard S
6
194.5000
194.5000
23.5000
2.25 x Preparation T
6
195.5000
193.5000
16.3000
10.1.2.1.2. Normality Tests
Pass/Fail test results will be displayed by comparing the calculated pvalue to the alpha value provided in the above dialogue. Smaller pvalues indicate nonnormality.
For more information see section 6.3.3. Normality Tests.
Example
ShapiroWilk Normality Test
Alpha = 0.05
Dose x Preparations
Test Statistic
Probability
Pass/Fail
1 x Standard S
0.8581
0.1827
Pass
1 x Preparation T
0.8118
0.0749
Pass
1.5 x Standard S
0.8965
0.3536
Pass
1.5 x Preparation T
0.9757
0.9284
Pass
2.25 x Standard S
0.9879
0.9835
Pass
2.25 x Preparation T
0.8255
0.0984
Pass
KolmogorovSmirnov Normality Test
Alpha = 0.05
* Lilliefors probability = 0.2 means 0.2 or greater.
Dose x Preparations
Test Statistic
* Probability
Pass/Fail
1 x Standard S
0.3050
0.0851
Pass
1 x Preparation T
0.2922
0.1177
Pass
1.5 x Standard S
0.2038
0.2000
Pass
1.5 x Preparation T
0.1639
0.2000
Pass
2.25 x Standard S
0.1364
0.2000
Pass
2.25 x Preparation T
0.3115
0.0703
Pass
Cramervon Mises Normality Test
Alpha = 0.05
Dose x Preparations
Test Statistic
Probability
Pass/Fail
1 x Standard S
0.0849
0.1450
Pass
1 x Preparation T
0.0886
0.1276
Pass
1.5 x Standard S
0.0544
0.3902
Pass
1.5 x Preparation T
0.0274
0.8514
Pass
2.25 x Standard S
0.0210
0.9388
Pass
2.25 x Preparation T
0.1046
0.0740
Pass
AndersonDarling Normality Test
Alpha = 0.05
Dose x Preparations
Test Statistic
Probability
Pass/Fail
1 x Standard S
0.4756
0.1438
Pass
1 x Preparation T
0.5470
0.0901
Pass
1.5 x Standard S
0.3341
0.3689
Pass
1.5 x Preparation T
0.1760
0.8637
Pass
2.25 x Standard S
0.1514
0.9165
Pass
2.25 x Preparation T
0.5613
0.0818
Pass
10.1.2.1.3. Homogeneity of Variance Tests
Another basic assumption of Parallel Line Method is that variances for different treatment groups are not significantly different from each other.
Earlier versions of UNISTAT featured Bartlett’s chisquare test as recommended by European Pharmacopoeia (19972017), and Hartley’s F test. Here we provide three more homogeneity of variance tests. The computationally demanding Levene’s test is considered to be more powerful than other homogeneity of variance tests.
Test results are displayed as either Pass or Fail, by comparing the calculated pvalue to the alpha value provided in the above dialogue. Smaller pvalues indicate nonhomogeneity.
For a detailed description of these tests see 7.4.2.1. Homogeneity of Variance Test Results.
Example
Homogeneity of Variance Tests
For 6 groups defined by Dose x Preparations.
Alpha = 0.05

Test Statistic
Probability
Pass/Fail
Bartlett’s Chisquare Test
3.7817
0.5813
Pass
BartlettBox F Test
0.7637
0.5760
Pass
Cochran’s C (max var / sum var)
0.3588
0.2313
Pass
Hartley’s F (max var / min var)
4.6053
0.0500
Pass
Levene’s F Test
1.5818
0.1954
Pass
Hartley’s F probability = 0.05 means 0.05 or greater.
10.1.2.1.4. Outlier Tests
For more information see section 6.3.4. Outlier Tests.
In addition to the tests provided here outliers can also be detected using standardised residuals. See section 10.0.6. Outlier Detection, Omission and Replacement.

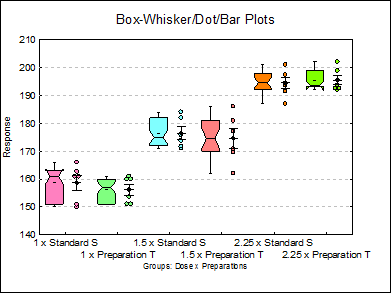

10.1.2.1.5. BoxWhisker, Dot and Bar Plots
This procedure combines boxplot with dot and error bar plots.
Although all three plot types are displayed on the same graph by default, the user can change graph settings to display any combination of the three plot types, as well as changing other characteristics of the graph. To do this click on the [Opt] button situated to the left of this output option and from the Graphics Editor menu select Edit → Width / Notch / Dots.
For more information see section 5.3.1. BoxWhisker, Dot and Bar Plots.
10.1.2.1.6. Normality Plots
By default all treatments are drawn with a line of best fit on a graph with a probit scale Yaxis against the response on a linear Xaxis. If the data lies on a nearstraight line, then it is said to conform to the normal distribution.
All aspects of the graph can be edited an customised by clicking on the [Opt] button situated to the left of this output option. This will display the Graphics Editor. From the menu select Edit → Data Series.
For more information see sections 6.3.3.5. Normality Plots and 5.3.2. Normal Probability Plot.
10.1.2.2. Regression Results
A separate regression line is fitted on each preparation against the natural logarithm of dose. It is also possible to take logs based 10 by entering the following line:
LogBase10=1
C:\ProgramData\Unistat\Unistat10\Unistat10.ini
Example
Separate Regression

Intercept
Slope
Residual SS
Rsquared
Pass/Fail
Standard S
248.5800
113.0060
1897.7400
0.9651
Pass
Preparation T
238.5000
109.5039
747.8000
0.9851
Pass
Common Regression

Intercept
Slope
Residual SS
Rsquared
Pass/Fail
Standard S
247.5150
111.2549
2670.7450
0.9744
Pass
Preparation T
239.5650




Residual Variance =
72.1823
Degrees of Freedom =
37
10.1.2.3. Case (Diagnostic) Statistics
Example
Case (Diagnostic) Statistics

Response
Dose
Preparations
Estimated Response
Residuals
Standardised Residuals
1
161
1
Standard S
157.7639
3.2361
0.5684
2
151
1
Preparation T
156.6528
5.6528
0.9928
** 3
162
1.5
Preparation T
175.4444
13.4444
2.3612
4
194
2.25
Standard S
195.3472
1.3472
0.2366
5
176
1.5
Standard S
176.5556
0.5556
0.0976
6
193
2.25
Preparation T
194.2361
1.2361
0.2171
7
160
1
Preparation T
156.6528
3.3472
0.5879
8
192
2.25
Preparation T
194.2361
2.2361
0.3927
9
195
2.25
Standard S
195.3472
0.3472
0.0610
10
184
1.5
Standard S
176.5556
7.4444
1.3075
…
…
…
…
…
…
…
Cases marked by ‘**’ are outliers at 2 x Standard Deviation.
Example
In above example case 3 is reported as an outlier at a two standard deviations threshold. Going back to the spreadsheet, deleting the response value of 162 in row 3 and running the analysis again, we obtain a predicted value of 176.2353 for the omitted outlier.
Case (Diagnostic) Statistics

Response
Dose
Preparations
Estimated Response
Residuals
Standardised Residuals
1
161
1
Standard S
157.7639
3.2361
0.6176
2
151
1
Preparation T
157.4436
6.4436
1.2298
* 3
*
1.5
Preparation T
176.2353
*
*
4
194
2.25
Standard S
195.3472
1.3472
0.2571
5
176
1.5
Standard S
176.5556
0.5556
0.1060
6
193
2.25
Preparation T
195.0270
2.0270
0.3869
7
160
1
Preparation T
157.4436
2.5564
0.4879
8
192
2.25
Preparation T
195.0270
3.0270
0.5777
9
195
2.25
Standard S
195.3472
0.3472
0.0663
10
184
1.5
Standard S
176.5556
7.4444
1.4208
…
…
…
…
…
…
…
Cases marked by ‘*’ are predicted.
10.1.2.4. Comparison of Slopes
If an assay with two or more test preparations is found to depart from parallelism significantly, then we ask the question which test preparation’s slope differs from the slope of the standard preparation. A Dunnett’s multiple comparison test is performed to answer this question.
Here we perform a Dunnett Test, Comparisons against a Control Group option, using the slope values from Separate Regression. For details see 7.4.3.8. Dunnett test.
The slopes test described in European Pharmacopoeia (19972017) employs a slightly different algorithm, which is only valid for 2, 3 or 4dose assays. It is based on linear contrasts as a proxy for actual slopes. The two approaches are identical and produce the same probability values. UNISTAT does not have a limitation on the number of distinct dose values.
L_{1} is the linear contrast for the standard preparation,
L_{i} is the linear contrast for the i^{th} test preparation and
s^{2} is the residual mean square value from the ANOVA table (i.e. sum of squares for the overall residual term divided by its degrees of freedom)
The twotailed probability for the test statistic is generated using an algorithm developed by Charles Dunnett (Algorithm AS 251) for α significance level, (h – 1) number of groups. The degrees of freedom is equal to that of the overall residual term of the ANOVA table.
Example
Comparison of Slopes
Comparison
Difference
Standard Error
q Stat
Table q
Probability
Preparation T – Standard S
4.3160
5.9453
0.7260
2.0423
0.4735
Comparison
Lower 95%
Upper 95%
Pass/Fail
Preparation T – Standard S
7.8259
16.4580
Pass
10.1.2.5. Validity of Assay
This output option displays an Analysis of Variance (ANOVA) table, which is used to test the Validity of Assay. The residual sum of squares and its degrees of freedom are used in estimating the confidence limits for the Potency (see section 10.1.2.6. Potency). The three basic tests performed are (i) significance of regression, (ii) parallelism and (iii) linearity. The table may have different entries in its rows depending on the number of doses and / or the ANOVA model employed.
The notation below is for balanced designs as given by European Pharmacopoeia (19972017). For unbalanced designs, the only difference is that the sums are taken up to the maximum number of observations in each treatment group, which can be different. See 10.2. Slope Ratio Method, section 10.2.2.4. Validity of Assay for a general unbalanced formulation.
Let us first define the constant term:
which is the sum total of all cases divided by the total number of treatment groups, the Treatments term:
which is the sum of all squared treatment totals minus the constant term, and the Total term:
which is the sum of all squared cases minus the constant term. The rest of table entries are defined as in the following table. Note that instead of reporting linearity and parallelism, we always report nonlinearity and nonparallelism, so that when an Ftest gives a significant result (i.e. a low Pvalue), it means that a data set is not linear or two or more data sets are not parallel. Where possible, we also report nonlinearity tests for individual preparations, as well as the overall nonlinearity for all preparations.
If you do not wish to display the individual nonlinearity values for preparations enter the following line:
NonLinPrepDisp=0
C:\ProgramData\Unistat\Unistat10\Unistat10.ini
QuadraticDisp=0

Degrees of Freedom
2dose
3dose
4dose
Preparations
h – 1



Linear Regression
1



Nonparallelism
h – 1



Nonlinearity
h for 3dose 2h for 4dose



Quadratic Regression
1



Difference of Quadratics
h – 1



Residual
h



Treatments
k – 1
M
M
M
Residual

R
R
R
Total
nk – 1
T
T
T
The following relationships should always be true:
1) Degrees of freedom and sum of squares for the first four rows (i.e. Preparations, Linear Regression, Nonparallelism and Nonlinearity) should always add up to Treatments,
2) Quadratic Regression, Difference of Quadratics and their Residuals should always add up to Nonlinearity,
3) Treatments (including plate, row and column effects) and their Residuals should always add up to Total.
Example
Validity of Assay
Due To
Sum of Squares
DoF
Mean Square
FStat
Prob
Pass/Fail
Preparations
11.111
1
11.111
0.535
0.4730
**Fail**
Linear Regression
8475.042
1
8475.042
408.108
0.0000
Pass
Nonparallelism
18.375
1
18.375
0.885
0.3581
Pass
Nonlinearity
5.472
2
2.736
0.132
0.8773
Pass
Standard S Nonlinearity
0.028
1
0.028
0.001
0.9712
Pass
Preparation T Nonlinearity
5.444
1
5.444
0.262
0.6142
Pass
Quadratic Regression
3.125
1
3.125
0.150
0.7022

Quadratic Difference
2.347
1
2.347
0.113
0.7402

Treatments
8510.000
5
1702.000
81.958
0.0000
Pass
Blocks(Rows)
412.000
5
82.400
3.968
0.0116

Blocks(Columns)
218.667
5
43.733
2.106
0.1069

Residual
415.333
20
20.767



Total
9556.000
35
273.029



10.1.2.6. Potency
By default, the program estimates the potency ratio and its confidence limits employing the generalised algorithm given in Finney (1978), which works with unbalanced, symmetric and balanced designs. European Pharmacopoeia (19972017) gives a more restrictive algorithm for balanced assays only. The logarithm of potency ratio is estimated for each test preparation, using the Common Regression slope b.
and:
where:
are the preparation means and A_{i} is the assumed potency of each test preparation. The estimated potency is the antilog of M, Exp(M).
The method of estimating the confidence interval for potency is based on Fieller’s Theorem (see Finney 1978, p. 80). Let us first define the correction factor g as:
The log of confidence limits for the potency ratio of each test preparation is defined as:
where the variance of M_{i} is:
Weights are computed after the estimated potency and its confidence interval are found:
and % Precision is:
According to European Pharmacopoeia (1997) the common slope b is calculated as:
Where:
Z = Log(dose_{i+1}) – Log(dose_{i}), i = 2, … , d
is the log of successive dose ratios. Also define a correction factor:
The log of the corrected potency estimate and its confidence intervals are computed as:
where:
The only difference from the default output here is reporting of C and H constants for validation purposes, where C = 1 / (1 – g).
If the data column [Dose] contains the actual dose levels administered in original dose units, we will obtain the estimated potency and its confidence limits in the same units. If, however, the [Dose] column contains unitless relative dose levels, then we may need to perform further calculations to obtain the estimated potency in original units. To do that you can enter assigned potency of the standard, assumed potency of each test preparation and predilutions for all preparations including the standard in a data column and select it as [Dilution] variable. UNISTAT will then calculate the estimated potency as described in section 10.0.2. Doses, Dilutions and Potency. Also see section 10.0.3. Potency Calculation Example.
Example
Potency
Latin Squares Design

Estimated Potency
Lower 95%
Upper 95%
DoF
% Precision
Preparation T
0.9763
0.9112
1.0456
20
93.33%

Relative Potency
Lower 95%
Upper 95%
Preparation T
97.63%
91.12%
104.56%

Percent CI
Lower 95%
Upper 95%
Pass/Fail
Preparation T
100.00%
93.33%
107.09%
Pass
PotencyPctLower: 93.3289382317094 GT 75 Pass
AND
PotencyPctUpper: 107.0925498258 LT 125 Pass
G =
0.0107
C =
1.0108
10.1.2.7. DoseResponse Plot
By default, this option generates a plot of treatment means against the log of dose, with standard error bars for each mean. Each preparation will be plotted as one data series, with as many points as the number of doses applied. A line of best fit and its confidence limits will be drawn for each series. This provides a visual means of inspecting the data, enabling the user to notice immediately whether there is something substantially wrong with the data.
Alternatively, individual response values can be plotted against the log of dose, all with or without trend lines and confidence intervals.
Clicking the [Opt] button situated to the left of DoseResponse Plot output option will place the graph in UNISTAT’s Graphics Editor. Here, all aspects of the graph can be edited and customised.
Selecting Edit → DoseResponse Plot… (or doubleclicking on the graph area) will pop a dialogue where what is displayed on the plot can be controlled.
If you uncheck the Treatment means with error bars box, individual response values will be plotted against the log of dose.
10.1.3. Parallel Line Examples
The following Parallel Line Method examples are based on different Analysis of Variance methods. Data sets were entered into UNISTAT’s spreadsheet and necessary data manipulations made by using UNISTAT spreadsheet functions (see 10.0.1. Data Preparation and 10.0.2. Doses, Dilutions and Potency). Final data sets were saved in two files; BIOPHARMA9 which contains examples from European Pharmacopoeia (2017, the 9^{th} Edition) and BIOFINNEY containing examples from Finney (1978).
10.1.3.1. Completely Randomised Design with 2 Doses and 3 Preparations
Data is given in Table 5.1.1I. on p. 4364 of European Pharmacopoeia (9^{th} Edition).
Open BIOPHARMA9 and select Bioassay → Parallel Line Method. From the Variable Selection Dialogue select the first option Completely Randomised Design and then select columns C1, C2 and L3 respectively as [Data], [Dose] and [Preparation]. Click [Next] to proceed to Output Options Dialogue. Click [All] to perform all tests in one go and click [Finish]. The following output is obtained:
Parallel Line Method
Valid Number of Cases: 60, 0 Omitted
Completely Randomised Design
Summary Statistics
Data variable: Response
Subsample selected by: Dose x Preparations

Valid Cases
Mean
Variance
Standard Error
0.25 x Standard S
10
332.0000
1026.6667
10.1325
0.25 x Preparation T
10
323.9000
724.9889
8.5146
0.25 x Preparation U
10
282.2000
854.6222
9.2446
1 x Standard S
10
248.4000
483.8222
6.9557
1 x Preparation T
10
244.0000
718.6667
8.4774
1 x Preparation U
10
250.0000
784.6667
8.8581
AndersonDarling Normality Test
Alpha = 0.05
Dose x Preparations
Test Statistic
Probability
Pass/Fail
0.25 x Standard S
0.2218
0.7658
Pass
0.25 x Preparation T
0.2311
0.7326
Pass
0.25 x Preparation U
0.5030
0.1549
Pass
1 x Standard S
0.3494
0.3962
Pass
1 x Preparation T
0.2337
0.7232
Pass
1 x Preparation U
0.2055
0.8201
Pass
Homogeneity of Variance Tests
For 6 groups defined by Dose x Preparations.
Alpha = 0.05

Test Statistic
Probability
Pass/Fail
Levene’s F Test
0.3738
0.8644
Pass
Dixon’s Outlier Test
Alpha = 0.05
Onetailed tests
Dose x Preparations
Dixon’s Q
Table Q
Pass/Fail
0.25 x Standard S Q(Min)
0.1351
0.4779
Pass
Q(Max)
0.2889
0.4779
Pass
0.25 x Preparation T Q(Min)
0.0714
0.4779
Pass
Q(Max)
0.1333
0.4779
Pass
0.25 x Preparation U Q(Min)
0.1299
0.4779
Pass
Q(Max)
0.0429
0.4779
Pass
1 x Standard S Q(Min)
0.1667
0.4779
Pass
Q(Max)
0.3333
0.4779
Pass
1 x Preparation T Q(Min)
0.0857
0.4779
Pass
Q(Max)
0.1351
0.4779
Pass
1 x Preparation U Q(Min)
0.0429
0.4779
Pass
Q(Max)
0.1410
0.4779
Pass
N = 10, Q(Min)=(X(2)X(1))/(X(N1)X(1)), Q(Max)=(X(N)X(N1))/(X(N)X(2))
Separate Regression

Intercept
Slope
Residual SS
Rsquared
Standard S
248.4000
60.3047
13594.4000
0.7199
Preparation T
244.0000
57.6357
12992.9000
0.7107
Preparation U
250.0000
23.2274
14753.6000
0.2600
Common Regression

Intercept
Slope
Residual SS
Rsquared
Standard S
257.5833
47.0559
49559.1333
0.5629
Preparation T
251.3333



Preparation U
233.4833



Residual Variance =
884.9845
Degrees of Freedom =
56
Case (Diagnostic) Statistics

Response
Dose
Preparations
Estimated Response
Residuals
Standardised Residuals
1
300
0.25
Standard S
322.8167
22.8167
0.7670
2
310
0.25
Standard S
322.8167
12.8167
0.4308
3
330
0.25
Standard S
322.8167
7.1833
0.2415
4
290
0.25
Standard S
322.8167
32.8167
1.1031
5
364
0.25
Standard S
322.8167
41.1833
1.3844
6
328
0.25
Standard S
322.8167
5.1833
0.1742
** 7
390
0.25
Standard S
322.8167
67.1833
2.2584
8
360
0.25
Standard S
322.8167
37.1833
1.2499
9
342
0.25
Standard S
322.8167
19.1833
0.6448
10
306
0.25
Standard S
322.8167
16.8167
0.5653
11
289
1
Standard S
257.5833
31.4167
1.0561
12
221
1
Standard S
257.5833
36.5833
1.2297
13
267
1
Standard S
257.5833
9.4167
0.3165
…
…
…
…
…
…
…
Cases marked by ‘**’ are outliers at 2 x Standard Deviation.
Comparison of Slopes
Comparison
Difference
Standard Error
q Stat
Table q
Preparation U – Standard S
37.0773
12.6231
2.9372
2.2713
Preparation T – Standard S
2.6690
12.6231
0.2114
2.2713
Comparison
Probability
Lower 95%
Upper 95%
Result
Preparation U – Standard S
0.0093
8.4061
65.7484
**Fail**
Preparation T – Standard S
0.9678
26.0022
31.3401
Pass
Validity of Assay
Due To
Sum of Squares
DoF
Mean Square
FStat
Prob
Preparations
6256.633
2
3128.317
4.086
0.0223
Linear Regression
63830.817
1
63830.817
83.377
0.0000
Nonparallelism
8218.233
2
4109.117
5.367
0.0075
Nonlinearity
0.000
0



Treatments
78305.683
5
15661.137
20.457
0.0000
Residual
41340.900
54
765.572


Total
119646.583
59
2027.908


Potency

Estimated Potency
Lower 95%
Upper 95%
DoF
% Precision
Preparation T
1.1420
0.7836
1.6869
54
68.62%
Preparation U
1.6689
1.1481
2.5550
54
68.80%

Relative Potency
Lower 95%
Upper 95%
Preparation T
114.20%
78.36%
168.69%
Preparation U
166.89%
114.81%
255.50%

Percent CI
Lower 95%
Upper 95%
Preparation T
100.00%
68.62%
147.71%
Preparation U
100.00%
68.80%
153.10%
G =
0.0482
C =
1.0507
Looking at the plot of treatment means we can see that Preparation U line is not nearly parallel to Standard S and Preparation T lines. This can also be picked up from the nonparallelism test in Validity of Assay (0.0075), which is significant at 5% level. The Comparison of Slopes test also reports a significant difference between Preparation U and Standard S slopes.
This assay can still be useful by omitting Preparation U and performing the analysis for Standard S and Preparation U. In Excel AddIn Mode, you can simply select the block A1:C41 and repeat the analysis. In StandAlone Mode, you can define a Select Row column to omit these rows from the analysis, without actually deleting them from the spreadsheet. To do this, click somewhere on column 4, and select Data → Select Row option from UNISTAT’s spreadsheet menus. The colour of C4 will change. This indicates that all rows with a 0 entry in this column will be omitted from the subsequent analyses.
When the analysis is repeated without Preparation U, the following results are obtained:
Parallel Line Method
Rows 4160 Omitted
Selected by C4 Select
Valid Number of Cases: 40, 20 Omitted
Completely Randomised Design
Separate Regression

Intercept
Slope
Residual SS
Rsquared
Standard S
248.4000
60.3047
13594.4000
0.7199
Preparation T
244.0000
57.6357
12992.9000
0.7107
Common Regression

Intercept
Slope
Residual SS
Rsquared
Standard S
249.3250
58.9702
26621.5250
0.7151
Preparation T
243.0750



Residual Variance =
719.5007
Degrees of Freedom =
37
Comparison of Slopes
Comparison
Difference
Standard Error
q Stat
Table q
Preparation T – Standard S
2.6690
12.3983
0.2153
2.0281
Comparison
Probability
Lower 95%
Upper 95%
Result
Preparation T – Standard S
0.8308
22.4759
27.8138
Pass
Validity of Assay
Due To
Sum of Squares
DoF
Mean Square
FStat
Prob
Preparations
390.625
1
390.625
0.529
0.4718
Linear Regression
66830.625
1
66830.625
90.491
0.0000
Nonparallelism
34.225
1
34.225
0.046
0.8308
Nonlinearity
0.000
0



Treatments
67255.475
3
22418.492
30.355
0.0000
Residual
26587.300
36
738.536


Total
93842.775
39
2406.225


Potency

Estimated Potency
Lower 95%
Upper 95%
DoF
% Precision
Preparation T
1.1118
0.8250
1.5136
36
74.20%

Relative Potency
Lower 95%
Upper 95%
Preparation T
111.18%
82.50%
151.36%

Percent CI
Lower 95%
Upper 95%
Preparation T
100.00%
74.20%
136.14%
G =
0.0455
C =
1.0476
In StandAlone Mode, do not forget to reset column 4, otherwise the Select Row function will be effective in subsequent procedures you run. To do this, click somewhere on column 4, and select Data → Select Row option again, or select Formula → Quick Formula from the menu and enter data. The colour of C4 will change back to its original state.
10.1.3.2. Completely Randomised Design with 5 Doses and 4 Preparations
Data is given in Table 5.1.4I. on p. 4367 of European Pharmacopoeia (9^{th} Edition).
Open BIOPHARMA9 and select Bioassay → Parallel Line Method. From the Variable Selection Dialogue select the first option Completely Randomised Design and then select columns C17, C18, L19 and L20 respectively as [Data], [Dose], [Preparation] and [Dilution]. Click [Next] to proceed to Output Options Dialogue, select only the following output options and click [Finish]:
Parallel Line Method
Valid Number of Cases: 60, 0 Omitted
Completely Randomised Design
Separate Regression

Intercept
Slope
Residual SS
Rsquared
Standard S
0.5998
0.8813
0.0904
0.9920
Preparation T
0.1355
0.9037
0.1208
0.9898
Preparation U
0.0226
0.9278
0.0843
0.9933
Preparation V
0.0714
0.9211
0.0459
0.9963
Common Regression

Intercept
Slope
Residual SS
Rsquared
Standard S
0.5621
0.9085
0.3600
0.9925
Preparation T
0.1422



Preparation U
0.0495



Preparation V
0.0539



Residual Variance =
0.0065
Degrees of Freedom =
55
Comparison of Slopes
Comparison
Difference
Standard Error
q Stat
Table q
Preparation U – Standard S
0.0466
0.0304
1.5296
2.4415
Preparation V – Standard S
0.0398
0.0304
1.3074
2.4415
Preparation T – Standard S
0.0224
0.0304
0.7365
2.4415
Comparison
Probability
Lower 95%
Upper 95%
Result
Preparation U – Standard S
0.3036
0.0278
0.1209
Pass
Preparation V – Standard S
0.4262
0.0345
0.1141
Pass
Preparation T – Standard S
0.8033
0.0519
0.0967
Pass
Validity of Assay
Due To
Sum of Squares
DoF
Mean Square
FStat
Prob
Preparations
4.475
3
1.492
223.395
0.0000
Linear Regression
47.584
1
47.584
7125.912
0.0000
Nonparallelism
0.019
3
0.006
0.933
0.4339
Nonlinearity
0.074
12
0.006
0.926
0.5307
Standard S Nonlinearity
0.017
3
0.006
0.850
0.4747
Preparation T Nonlinearity
0.028
3
0.009
1.410
0.2538
Preparation U Nonlinearity
0.018
3
0.006
0.886
0.4564
Preparation V Nonlinearity
0.011
3
0.004
0.559
0.6455
Treatments
52.152
19
2.745
411.053
0.0000
Residual
0.267
40
0.007


Total
52.419
59
0.888


Potency
Assumed potency of Preparation T: 20 Āµg protein/ml
Assumed potency of Preparation U: 20 Āµg protein/ml
Assumed potency of Preparation V: 20 Āµg protein/ml

Estimated Potency
Lower 95%
Upper 95%
Preparation T
43.4197
40.5448
46.5397
Preparation U
35.1628
32.8697
37.6403
Preparation V
39.4018
36.8126
42.2058

Relative Potency
Lower 95%
Upper 95%
Preparation T
217.10%
202.72%
232.70%
Preparation U
175.81%
164.35%
188.20%
Preparation V
197.01%
184.06%
211.03%

Percent CI
Lower 95%
Upper 95%
Preparation T
100.00%
93.38%
107.19%
Preparation U
100.00%
93.48%
107.05%
Preparation V
100.00%
93.43%
107.12%
G =
0.0006
C =
1.0006
10.1.3.3. Randomised Block Design with 4 Doses and 2 Preparations
Data is given in Table 5.1.3.I on p. 4366 of European Pharmacopoeia (9^{th} Edition).
Open BIOPHARMA9 and select Bioassay → Parallel Line Method. From the Variable Selection Dialogue select the second option Randomised Block Design and the select columns C11, C12, L13, C14 and L15 respectively as [Data], [Dose], [Preparation], [Row Factor] and [Dilution]. Click [Next] to proceed to the Output Options Dialogue.
Parallel Line Method
Valid Number of Cases: 40, 0 Omitted
Randomised Block Design
Separate Regression

Intercept
Slope
Residual SS
Rsquared
Standard S
248.5800
113.0060
1897.7400
0.9651
Preparation T
238.5000
109.5039
747.8000
0.9851
Common Regression

Intercept
Slope
Residual SS
Rsquared
Standard S
247.5150
111.2549
2670.7450
0.9744
Preparation T
239.5650



Comparison of Slopes
Comparison
Difference
Standard Error
q Stat
Table q
Preparation T – Standard S
3.5022
5.1221
0.6837
2.0484
Comparison
Probability
Lower 95%
Upper 95%
Result
Preparation T – Standard S
0.4998
6.9901
13.9944
Pass
Validity of Assay
Due To
Sum of Squares
DoF
Mean Square
FStat
Prob
Preparations
632.025
1
632.025
11.722
0.0019
Linear Regression
101745.605
1
101745.605
1887.111
0.0000
Nonparallelism
25.205
1
25.205
0.467
0.4998
Nonlinearity
259.140
4
64.785
1.202
0.3321
Standard S Nonlinearity
238.140
2
119.070
2.208
0.1287
Preparation T Nonlinearity
21.000
2
10.500
0.195
0.8241
Quadratic Regression
148.225
1
148.225
2.749
0.1085
Quadratic Difference
34.225
1
34.225
0.635
0.4323
Residual
76.690
2
38.345


Treatments
102661.975
7
14665.996
272.015
0.0000
Blocks(Rows)
876.750
4
219.188
4.065
0.0101
Residual
1509.650
28
53.916


Total
105048.375
39
2693.548


Potency
Randomised Block Design
Assigned potency of Standard S: 670 IU/mg
Predilution of Standard S: 16.7 mg / 25 ml; 1 ml / 40 ml
Assumed potency of Preparation T: 20000 IU/vial
Predilution of Preparation T: 1 vial / 40 ml; 1 ml / 40 ml

Estimated Potency
Lower 95%
Upper 95%
Preparation T
19228.4755
18423.3508
20075.1776

Relative Potency
Lower 95%
Upper 95%
Preparation T
107.41%
102.91%
112.14%

Percent CI
Lower 95%
Upper 95%
Preparation T
100.00%
95.81%
104.40%
G =
0.0022
C =
1.0022
10.1.3.4. Latin Square Design with 3 Doses and 2 Preparations
Data is given in Table 5.1.2.II on p. 4367 of European Pharmacopoeia (9^{th} Edition).
The entry and transformation of this data set is more complicated than the two previous examples. In order to assign the correct dose levels and preparation groups, information given in Table 5.1.2.I is essential. Ensure that the way the factor columns are created is understood well.
Open BIOPHARMA9 and select Bioassay → Parallel Line Method. From the Variable Selection Dialogue select the third option Latin Square Design and then select columns C5, C6, L7, C8, C9 and L10 respectively as [Data], [Dose], [Preparation], [Row Factor], [Col Factor] and [Dilution]. Click [Next] to proceed to Output Options Dialogue.
Parallel Line Method
Valid Number of Cases: 36, 0 Omitted
Latin Squares Design
Separate Regression

Intercept
Slope
Residual SS
Rsquared
Standard S
158.6389
44.1879
478.3611
0.8895
Preparation T
155.7778
48.5040
573.1111
0.8901
Common Regression

Intercept
Slope
Residual SS
Rsquared
Standard S
157.7639
46.3460
1069.8472
0.8879
Preparation T
156.6528



Residual Variance =
32.4196
Degrees of Freedom =
33
Comparison of Slopes
Comparison
Difference
Standard Error
q Stat
Table q
Preparation T – Standard S
4.3160
4.5883
0.9407
2.0860
Comparison
Probability
Lower 95%
Upper 95%
Result
Preparation T – Standard S
0.3581
5.2551
13.8871
Pass
Validity of Assay
Due To
Sum of Squares
DoF
Mean Square
FStat
Prob
Preparations
11.111
1
11.111
0.535
0.4730
Linear Regression
8475.042
1
8475.042
408.108
0.0000
Nonparallelism
18.375
1
18.375
0.885
0.3581
Nonlinearity
5.472
2
2.736
0.132
0.8773
Standard S Nonlinearity
0.028
1
0.028
0.001
0.9712
Preparation T Nonlinearity
5.444
1
5.444
0.262
0.6142
Quadratic Regression
3.125
1
3.125
0.150
0.7022
Quadratic Difference
2.347
1
2.347
0.113
0.7402
Treatments
8510.000
5
1702.000
81.958
0.0000
Blocks(Rows)
412.000
5
82.400
3.968
0.0116
Blocks(Columns)
218.667
5
43.733
2.106
0.1069
Residual
415.333
20
20.767


Total
9556.000
35
273.029


Potency
Latin Squares Design
Assigned potency of Standard S: 4855 IU/mg
Predilution of Standard S: 25.2 mg / 24.5 ml
Assumed potency of Preparation T: 5600 IU/mg
Predilution of Preparation T: 21.4 mg / 23.95 ml

Estimated Potency
Lower 95%
Upper 95%
Preparation T
5456.3665
5092.3689
5843.3620

Relative Potency
Lower 95%
Upper 95%
Preparation T
97.63%
91.12%
104.56%

Percent CI
Lower 95%
Upper 95%
Preparation T
100.00%
93.33%
107.09%
G =
0.0107
C =
1.0108
10.1.3.5. Twin Crossover Design
Data is given in Table 5.1.5II. on p. 4368 of European Pharmacopoeia (9^{th} Edition).
Open BIOPHARMA9 and select Bioassay → Parallel Line Method. From the Variable Selection Dialogue select the fourth option Crossover Design and select columns C21, C22, L23, C24, C25 and L26 respectively as [Data], [Dose], [Preparation], [Row Factor] and [Col Factor]. Click [Next] to proceed to Output Options Dialogue and then click [Finish]. The following output is obtained:
Parallel Line Method
Valid Number of Cases: 64, 0 Omitted
Crossover Design
Separate Regression

Intercept
Slope
Residual SS
Rsquared
Standard
101.1875
47.6991
19294.1875
0.3119
Test
91.5625
20.1977
23815.8750
0.0618
Common Regression

Intercept
Slope
Residual SS
Rsquared
Standard
96.4219
33.9484
44563.5781
0.1658
Test
96.3281



Residual Variance =
730.5505
Degrees of Freedom =
61
Comparison of Slopes
Comparison
Difference
Standard Error
q Stat
Table q
Test – Standard
27.5014
8.4520
3.2538
2.0484
Comparison
Probability
Lower 95%
Upper 95%
Result
Test – Standard
0.0030
10.1882
44.8146
**Fail**
Validity of Assay
Due To
Sum of Squares
DoF
Mean Square
FStat
Prob
Nonparallelism
1453.5156
1
1453.5156
1.0638
0.3112
DaysxPreparations
31.6406
1
31.6406
0.0232
0.8801
DaysxLinear Regression
50.7656
1
50.7656
0.0372
0.8485
Error Between
38258.8125
28
1366.3862


Blocks(Rows)
39794.7344
31
1283.7011


Preparations
0.1406
1
0.1406
0.0010
0.9747
Linear Regression
8859.5156
1
8859.5156
64.5324
0.0000
Days
478.5156
1
478.5156
3.4855
0.0724
DaysxNonparallelism
446.2656
1
446.2656
3.2506
0.0822
Error Within
3844.0625
28
137.2879


Total
53423.2344
63
847.9878


Potency
Crossover Design
Assumed potency of Test: 40 IU/ml

Estimated Potency
Lower 95%
Upper 95%
Test
40.1106
33.4162
48.1646

Relative Potency
Lower 95%
Upper 95%
Test
100.28%
83.54%
120.41%

Percent CI
Lower 95%
Upper 95%
Test
100.00%
83.31%
120.08%
G =
0.0650
C =
1.0695
Although the plot of treatment means and the Comparison of Slopes test seem to indicate deviation from parallelism, the nonparallelism test in Validity of Assay (0.3112) is not significant at 5% level.
10.1.3.6. Triple Crossover Design
Table 10.3.1. on p. 205 from Finney, D. J. (1978) is an example with three dose levels and two preparations.
Open BIOFINNEY and select Bioassay → Parallel Line Method. From the Variable Selection Dialogue select the fourth option Crossover Design and select columns C15, C16, S17, C18 and C19 respectively as [Data], [Dose], [Preparation], [Row Factor] and [Col Factor]. Click [Next] to proceed to Output Options Dialogue and click [Finish].
Parallel Line Method
Valid Number of Cases: 60, 0 Omitted
Crossover Design
Separate Regression

Intercept
Slope
Residual SS
Rsquared
Standard
3.4547
0.2272
8.1200
0.0576
Test
4.1272
0.5713
5.2830
0.3725
Common Regression

Intercept
Slope
Residual SS
Rsquared
Standard
3.4547
0.3993
13.9718
0.1798
Test
3.9695



Residual Variance =
0.2451
Degrees of Freedom =
57
Comparison of Slopes
Comparison
Difference
Standard Error
q Stat
Table q
Test – Standard
0.3441
0.1209
2.8455
2.0639
Comparison
Probability
Lower 95%
Upper 95%
Result
Test – Standard
0.0089
0.5937
0.0945
**Fail**
Validity of Assay
Due To
Sum of Squares
DoF
Mean Square
FStat
Prob
Nonparallelism
0.5688
1
0.5688
1.6032
0.2176
Quadratic Regression
0.8687
1
0.8687
2.4484
0.1307
DaysxPreparations
0.3481
1
0.3481
0.9810
0.3318
DaysxLinear Regression
0.0031
1
0.0031
0.0086
0.9267
DaysxQuadratic Difference
1.9026
1
1.9026
5.3624
0.0294
Error Between
8.5153
24
0.3548


Blocks(Rows)
12.2066
29
0.4209


Preparations
0.3330
1
0.3330
4.7403
0.0395
Linear Regression
3.0636
1
3.0636
43.6087
0.0000
Days
0.0150
1
0.0150
0.2141
0.6477
Quadratic Difference
0.0261
1
0.0261
0.3716
0.5478
DaysxNonparallelism
0.0164
1
0.0164
0.2335
0.6333
DaysxQuadratic Regression
0.0216
1
0.0216
0.3075
0.5844
Error Within
1.6861
24
0.0703


Total
17.3685
59
0.2944


Potency

Estimated Potency
Lower 95%
Upper 95%
Test
0.2754
0.1783
0.3923
G =
0.0977
C =
1.1083
